TRIUMPH T140V CARBURETTOR MANIFOLD FITTING KIT 1973-78 BONNEVILLE

TRIUMPH T140V CARBURETTOR MANIFOLD FITTING KIT

1973-78

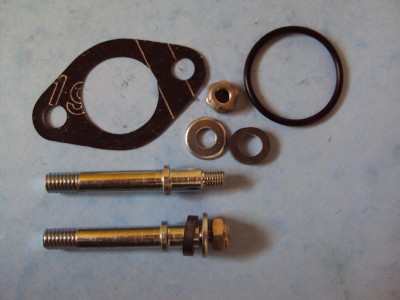

This is the correct fitting kit for the T140V only.

Flange studs x 2.
Insulating rubbers x 2
Insulating rubber cups x 2
Self lock nuts x 2
Manifold to head gasket x 1
Thick 'O' ring (pt no 70-9711) x 1

This 'O' ring is thicker than the standard Amal 'O' ring to take up the gap between the carburettor and the manifold.

When fitted there should be a gap of approx 1mm between the carburettor and the manifold, this was an attempt to isolate the carb from heat and vibration!

Genuine Triumph parts by L F Harris
